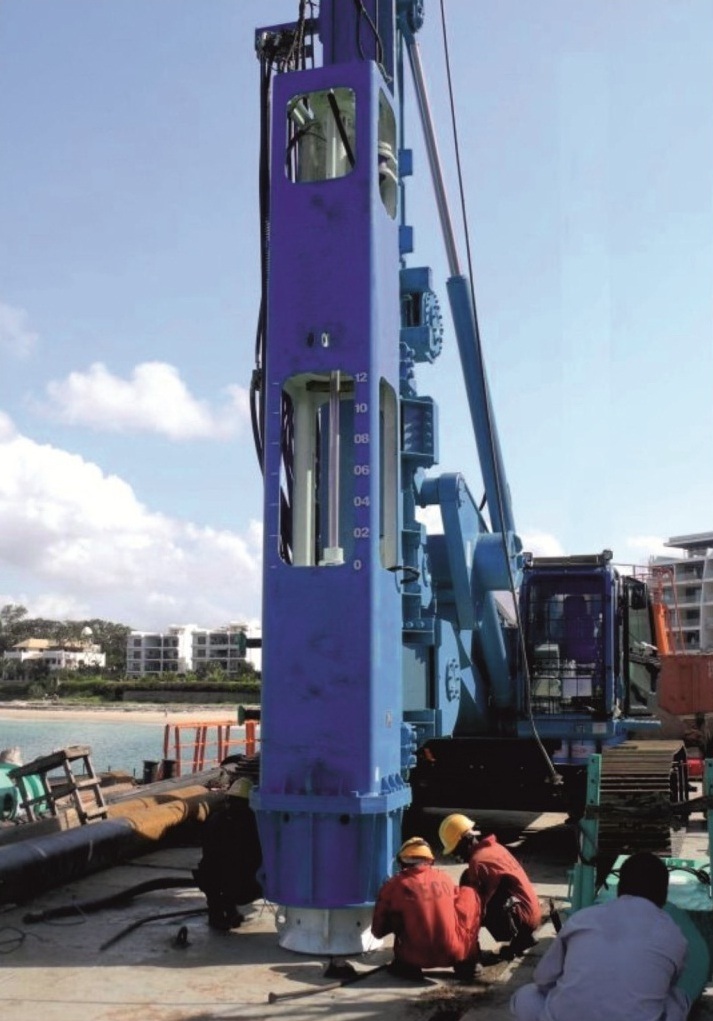

Hammer Azimut HH5 (hit 5 tons)

The proposed new universal Azimut HH5 hydraulic hammer for driving piles, tubes, of pile. The versatility and wide range of applications allow the use of hammer with different types and sizes of piles - concrete piles (round, square, octagonal), piles with steel case, etc. It is possible to use the breaker as in mast performance and suspension, operable in water and at an angle. RAM weight - 5000 kg Impact strength of 60 KN.m The height of the impact (the hammer) - 1200 mm Impact frequency in min – 40/100 The method of lifting (course hammer) - single cylinder Dimensions (without cap) – 5150 x 900 x 1060 mm Hammer weight (with cap) – 9600 kg Powerplant – 180R Engine - diesel, CUMMINS 6BTA5.9-C180 Engine power 180 HP Working pressure - 21 Mpa Max. flow rate - 200 l/min Oil tank volume - 800 l The volume of the fuel tank - 400 l Station weight – 3500 kg Individual order, manufacture according to the requirements breakers from the shock of 3-50 tons !!! We offer a turnkey solution – a complete self-propelled, multi-Koper (svaeboy) on the crawler !!! All products are certified. Delivery in any region of Russia !!!
